Map material and information flow from request to delivery to expose delay, waste and improvement opportunities.

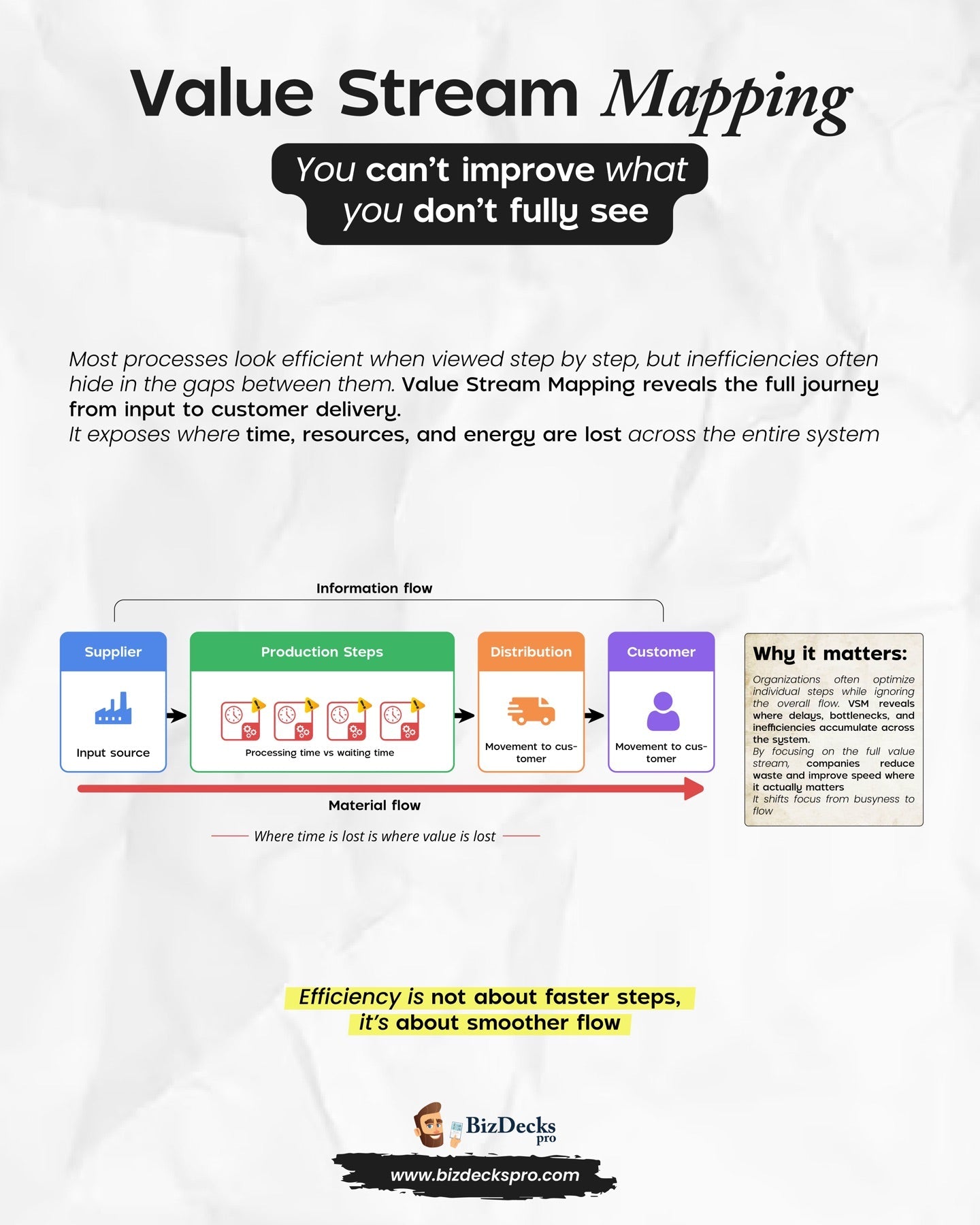

Use Value Stream Mapping to support flow, quality, reliability and continuous improvement when lead time is long despite fast individual tasks. The guide combines a visual one-pager with the model's core elements, application steps, an example and its main limitations.
What is Value Stream Mapping?
Value Stream Mapping, or VSM, visualizes the end-to-end flow of value, information, work and waiting. It compares process time with lead time and helps a team design a more effective future state.
The logic of Value Stream Mapping connects customer demand, process steps, material or work flow, information flow, timeline and future state. Define the objective and scope before filling the visual, then record the evidence behind the important claims.
Key elements of Value Stream Mapping
Customer demand
The required pace, volume and service expectation.
Process steps
Activities that transform or move the product or service.
Material or work flow
How items travel and queue across the system.
Information flow
Signals and decisions that trigger or control work.
Timeline
Processing time, waiting time and total lead time.
Future state
A practical design for improved flow and control.
Read the 6 elements of Value Stream Mapping as a connected system. A change in customer demand can affect future state, so avoid evaluating each part in isolation.
When should you use Value Stream Mapping?
Value Stream Mapping is most useful when lead time is long despite fast individual tasks, when queues and handoffs are unclear and when several functions must redesign one flow. It works best when the output will influence an actual decision, owner or review.
- When lead time is long despite fast individual tasks.
- When queues and handoffs are unclear.
- When several functions must redesign one flow.
Before applying Value Stream Mapping, select one product or service family. Also define the audience, decision boundary and review point so the analysis can lead to a practical choice.
How to use Value Stream Mapping step by step
- Step 1: Select one product or service family.
- Step 2: Observe the current state where work happens.
- Step 3: Record process, queue, time and information data.
- Step 4: Identify waste and the main flow constraints.
- Step 5: Design a future state and implement it through owned actions.
Value Stream Mapping provides structure. The quality of the decision still depends on the evidence, assumptions and follow-through placed inside it.
Practical Value Stream Mapping example
A loan approval process has only two hours of actual work but takes twelve days. The map exposes batch reviews, missing information and repeated handoffs. A completeness gate and smaller review batches reduce delay without asking staff to work faster.
This Value Stream Mapping example connects the analysis to a specific customer, process or economic outcome. Keep that level of detail when adapting the framework to your own decision.
Common Value Stream Mapping mistakes
- Mapping from a conference room without observation.
- Mixing very different flows.
- Drawing a future state without an implementation plan.
These mistakes weaken Value Stream Mapping because the finished diagram can look more certain than the evidence supports. Mark assumptions clearly and define what would cause the team to change its view.
Limitations of Value Stream Mapping
- A detailed map becomes stale when demand and process design change.
- VSM is strongest for a defined flow and does not replace strategy or product discovery.
Use Value Stream Mapping at the level of detail required by the decision. Add research or specialist analysis where a detailed map becomes stale when demand and process design change. Simplicity is useful only while it preserves the facts that matter.
Compare related frameworks: Value Chain Analysis, Theory of Constraints and DMAIC Model.
Value Stream Mapping FAQ
What is Value Stream Mapping?
Value Stream Mapping, or VSM, visualizes the end-to-end flow of value, information, work and waiting. It compares process time with lead time and helps a team design a more effective future state.
How to create a value stream map?
Select one product or service family. Observe the current state where work happens. Record process, queue, time and information data. Review the result against evidence before making the final decision.
VSM example?
A loan approval process has only two hours of actual work but takes twelve days. The map exposes batch reviews, missing information and repeated handoffs. A completeness gate and smaller review batches reduce delay without asking staff to work faster.
What is the main limitation of Value Stream Mapping?
A detailed map becomes stale when demand and process design change. Treat the output as decision support, not as an automatic answer.
